Modular Pilot Plant Automation

Ongoing automation support for a multiproduct plasma processing plant.
Ramp-up support and operational assistance, including digital twin development and process-level simulation with SIMIT.

Continued partnership for lasting success. Automation at its finest.

Starting in 2015, ZETA developed and implemented a versatile, fully automated multi-product system for blood plasma processing. It comprises 24 mobile processing units of different scales, which can be connected to the auxiliary system via 19 docking stations integrated into the cleanroom wall. The system recognizes which unit is docked, identifies its functionalities, and tracks the status of each mobile unit. Error-free docking and undocking enables a modular production concept. The complex automation concept enables 24/7 operation.

In the initial project, ZETA delivered the automation system, including hardware and software. In the years following the project, ZETA delivered a pilot plant upgrade, provided ongoing automation support, and enabled testing of specific use cases through simulation with SIMIT software from Siemens.

Read more about the related multipurpose pilot plant

Multipurpose Pilot Plant

The challenge

Changes and modifications to hardware and software pose a challenge to process automation. At the same time, there is limited downtime to perform tests and check-ups on the plant.

The solution

Ramp-up support and additional assistance

ZETA provided ongoing operational support to help maintain efficient plant performance. In a further project, ZETA provided software and server upgrades and implemented a process historian and information servers.

Digital Twin & SIMIT Simulation at process level

SIMIT simulation software enables testing of automation projects and virtual commissioning of systems and processes. As part of the follow-up project, ZETA generated a digital twin as a basis for simulation. Starting with a copy of the PCS7 DCS system, including the server infrastructure, and integrating SIMIT simulation from the virtual controller to the process level, enabling modeling of overall plant behavior. This digital twin allows simulation of the automated thermodynamic processes that occur in the plant system (e.g. reaching a certain temperature in a heating step), based on numerical modelling. The digital twin has been applied across multiple use cases and continues to be refined for additional applications. For example, updated anti-virus software could be tested for compatibility before being implemented in the real production process.

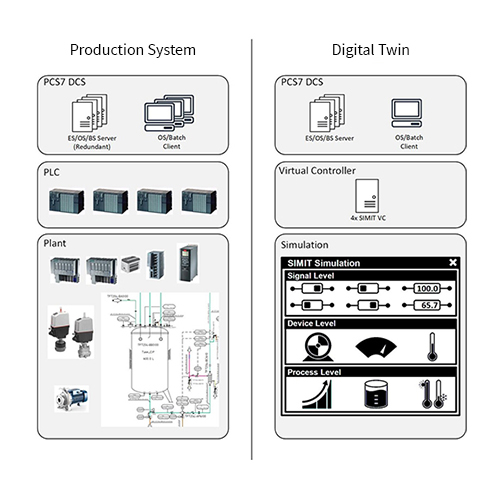

Scheme explaining the digital twin generated with SIMIT simulation
Starting with a copy of the PCS7 DCS system and integrating the SIMIT simulation, the behavior of the plant can be modeled.

Digital Twins Enable Smarter Automation and Facility Operations

ZETA supports complex manufacturing environments with automation lifecycle support, virtual commissioning, and digital twin strategies that reduce operational risk and improve system reliability.
Discuss Your Project
Discover more success stories.
A clean, modern industrial facility with large metal tanks and complex piping. Some equipment has digital overlays, suggesting the use of augmented reality or smart monitoring.

Simulation-Driven Concept Design for a Large-Scale mAb Facility

Simulation revealed the facility’s true bottlenecks before equipment was ordered, helping the customer right-size capacity, evaluate single-use and stainless options, and make defensible investment decisions.

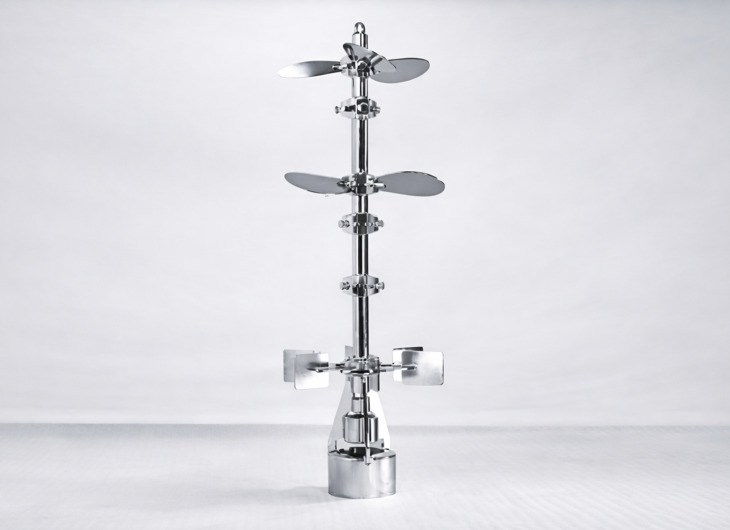

ZETA BMRF Agitator with withe background

Seamless Retrofit with ZETA BMRF for Enhanced Cleanability and Flexibility

Hygiene, flexibility, and process integrity – all in one retrofit. Tailored solution with a BMRF and CFD validation for a Northern European customer.
Two people seated at a conference table analyzing a large wall-mounted display showing a detailed, color-coded scheduling chart with multiple rows and timelines.

Holistic Process Simulation for Facility Design

INOSIM powers plasma processing facility. Comprehensive simulation approach for peak performance.
Close-up view of a pharmaceutical production line with multiple glass vials filled with a clear blue liquid, each sealed with a red cap, moving along a conveyor system in a sterile manufacturing environment.

Stand-Alone Simulation: Optimizing a Fill & Finish Facility

ZETA validates the planned capacity for a greenfield facility and saves a €5 million investment by using simulation expertise.

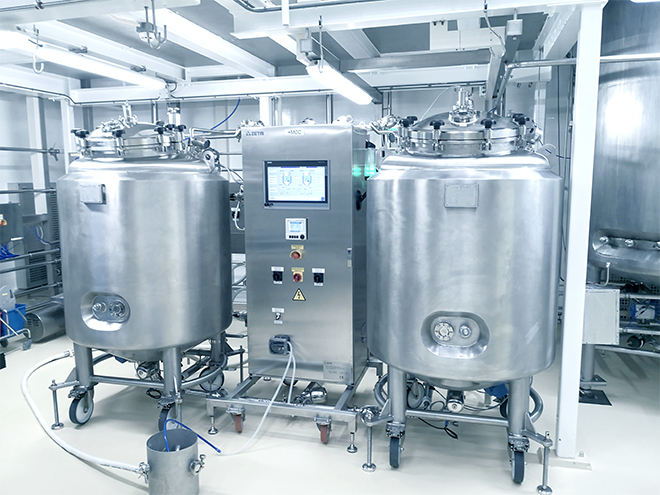

Mobile preparation system front view

Solving the Separation Challenge for a Life-Saving Vaccine

ZETA resolved a complex downstream separation challenge and translated the solution into a full-scale production system.

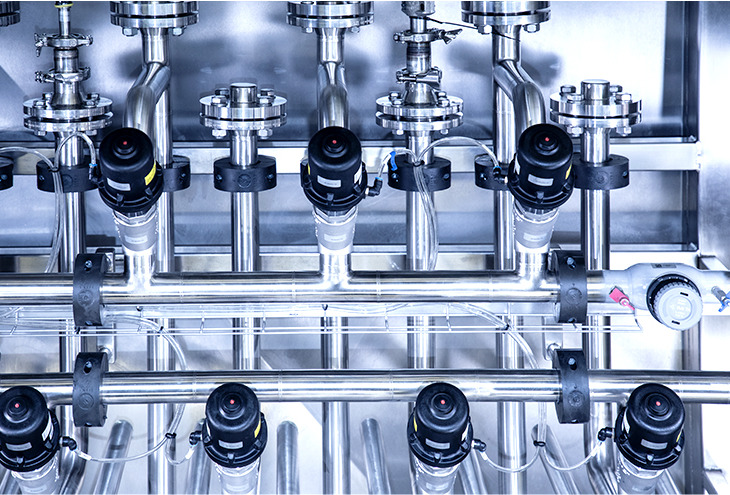

Detail from skid, consisting from piöes, hoses, valves

Process Integration for Gene Therapy Production

Seamless incorporation of single-use equipment allows maximum flexibility. ZETA delivers full-scope expertise from concept to qualification.

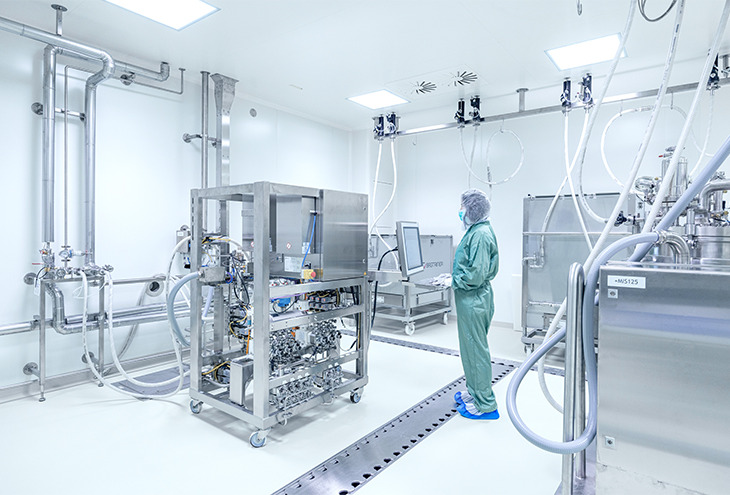

Person in cleanroom clothing in production area, mobile skids connected with hoses to the ceiling

Combining Stainless Steel and Single-Use

Stainless steel preparation plant and single-use filtration system integrated with Siemens PCS7 process control system.

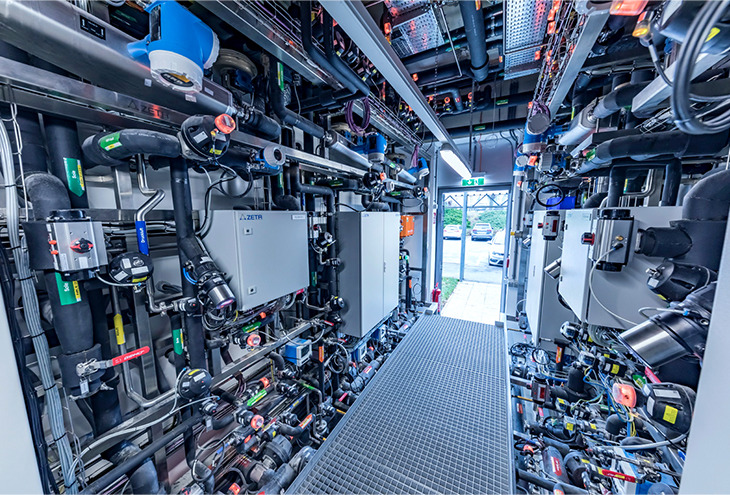

Technical area with corridor and open door facing outside

Multipurpose Pilot Plant

Fully automated multiproduct system covering clinical and routine production of new products in addition to pilot production.
Illustration of a sustainable city concept featuring wind turbines, solar panels, industrial buildings, and residential structures on a floating piece of land above water.

From Energy Monitoring to Full Facility Management

From energy monitoring to full facility control: Scalable FMS solution for CDMO site.

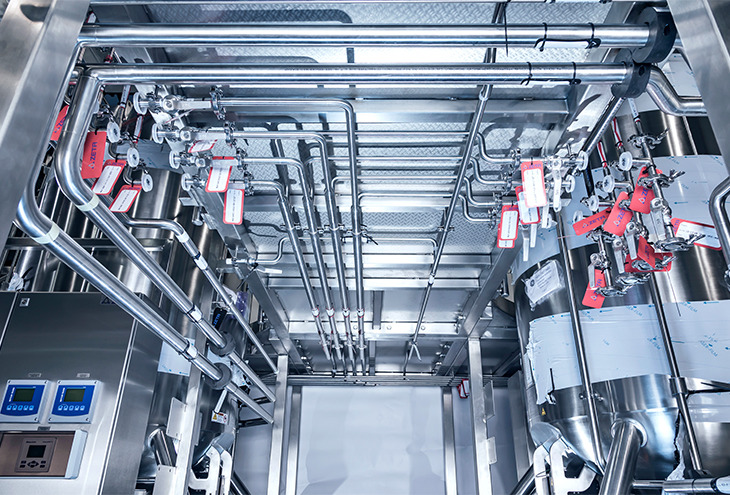

Piping under platform

Single-Use Bioreactor Integration

Hybrid bioreactor system combines single-use flexibility with stainless steel reliability.

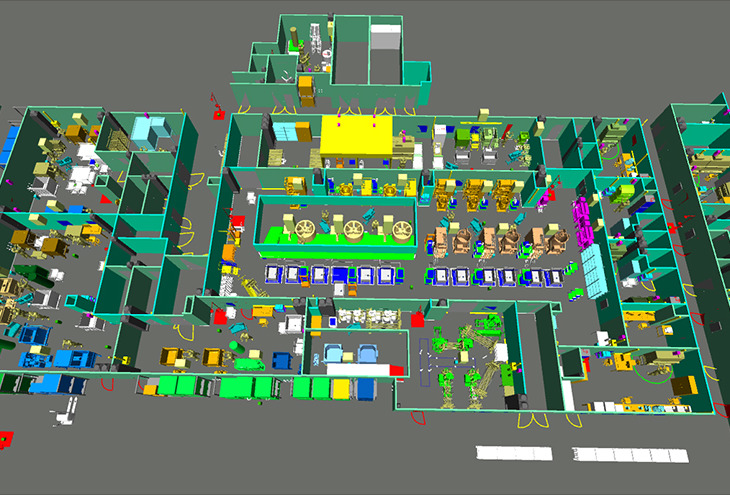

Detailed 3D layout of production facility

A True Hybrid Facility for Biopharmaceutical Manufacturing

Hybrid biopharma facility sets new standards in single-use and stainless-steel integration.

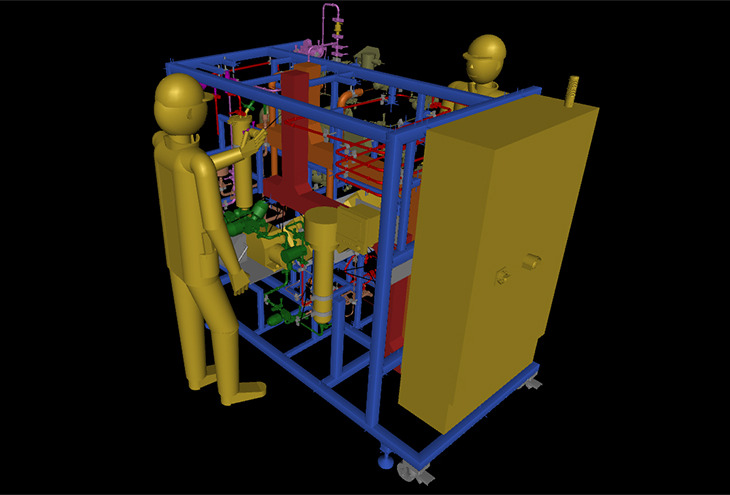

3D image of mobile production skid

High-Precision Mobile Skids

High-precision LNP mixing systems for mRNA vaccines delivered across Europe and the USA.
Small tank with glass window, front view

Engineering Excellence for Oral Drug Coating

Breakthrough in drug coating dispersion: 62% faster production with advanced mixing technology.

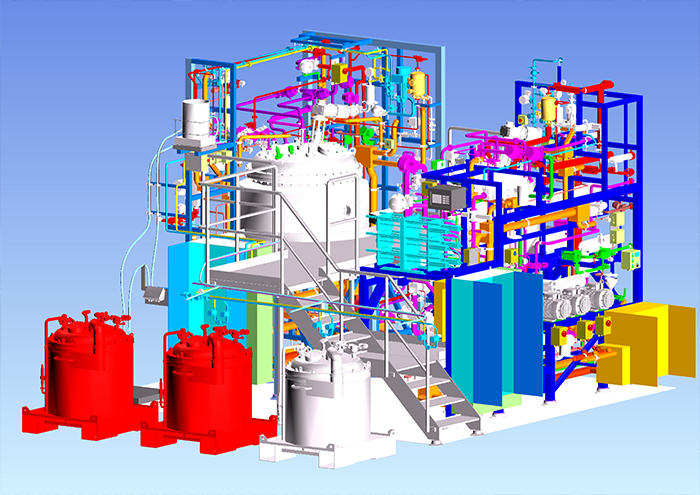

3D-image of production plant, including platform with stairs, vessels, piping, cabinets
